Keepalived를 활용하여 간단하게 HA 구성

hippo 데브옵스 2022. 7. 26. 02:39

2022. 7. 26. 02:39

VM 2대에 Keepalived를 설치하여 간단하게 HA를 구성하는 방안

1. Keepalived 기본 설명

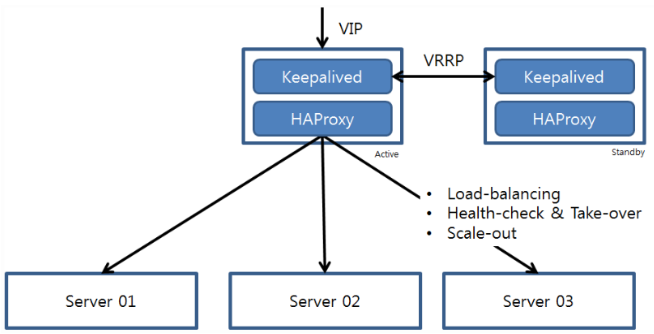

Keepalived는 가상 IP(VIP; Virtual IP)를 기반으로 작동
마스터 서버(Master Server)를 모니터링하다 해당 노드에 장애가 발생했을 시, 스탠바이 서버(Standby Server)로 페일오버(failover)되도록 지원

2. Keepalived 구성

node 1, node 2라는 서버 2대를 생성
node 1 서버를 MASTER 서버, node 2서버를 BACKUP 서버로 설정
두 서버는 서로 간의 헬스 체크를 수행하다가 MASTER 서버에 문제가 생겼을 시에 BACKUP 서버가 VIP(Virtual IP)를 Take-Over 하면서 지속적으로 서비스가 운영될 수 있도록 구성
eth0에 IP Alias를 사용할 경우, IP Spoofing으로 인식하고 해당 VM의 네트워크 통신을 끊어버리기 때문에, 위와 같은 구성을 하기 위해선 일단 VM에 추가 인터페이스 할당 후, VIP(Virtual IP)를 생성 필요
Keepalived를 통한 HA 구성을 하기 전에 아래 사전 작업 진행 필요

3. 3가지 작업을 통해 Keepalived를 활용한 HA 구성을 위한 사전 준비

Private Subnet 생성 → 192.168.100.0/24 대역
node 1, node 2 서버에 추가 인터페이스 할당 → 기존 인터페이스 사용 가능
node 1, node 2 서버에 VIP 할당

3.1. Private Subnet 생성

node 1, node 2 서버는 192.168.100.0/24 대역의 Private Subnet을 구성

3.2. node 1, node 2에 추가 인터페이스 할당

node1 서버와 node 2 서버에 추가 인터페이스를 할당
1. node 1 (MASTER) → 192.168.100.101
2. node 2 (BACKUP) → 192.168.100.102

3.3. node 1, node 2에 VIP(Virtual IP) 할당

node 1, node 2에 VIP(Virtual IP)를 할당
VIP는 192.168.100.250으로 설정 → 각각 node 1, node2에 eth1:0 인터페이스에 추가

node1의 eth1:0에 192.168.100.250 추가

# node1에서 동작 -> 일시적으로 VIP 추가
$ ifconfig eth1:0 192.168.100.250 netmask 255.255.255.0

# node1에서 동작 -> 영구적으로 VIP 추가
$ cp /etc/sysconfig/network-scripts/ifcfg-eth1 /etc/sysconfig/network-scripts/ifcfg-eth1:0
$ vi /etc/sysconfig/network-scripts/ifcfg-eth1:0
DEVICE=eth1:0
ONBOOT=yes
BOOTPROTO=static
IPADDR=192.168.100.250
NETMASK=255.255.255.0

# 네트워크 재시작
$ systemctl restart network

# node1에서 정상적으로 설정되었는지 확인
$ ifconfig
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.101  netmask 255.255.255.0  broadcast 192.168.100.255
        inet6 fe80::a00:27ff:fe30:d141  prefixlen 64  scopeid 0x20<link>
        ether 08:00:27:30:d1:41  txqueuelen 1000  (Ethernet)
        RX packets 11  bytes 1971 (1.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 22  bytes 2342 (2.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.250  netmask 255.255.255.0  broadcast 192.168.100.255
        ether 08:00:27:30:d1:41  txqueuelen 1000  (Ethernet)

node2의 eth1:0에 192.168.100.250 추가

# node2에서 동작 -> 일시적으로 VIP 추가
$ ifconfig eth1:0 192.168.100.250 netmask 255.255.255.0

# node2에서 동작 -> 영구적으로 VIP 추가
$ cp /etc/sysconfig/network-scripts/ifcfg-eth1 /etc/sysconfig/network-scripts/ifcfg-eth1:0
$ vi /etc/sysconfig/network-scripts/ifcfg-eth1:0
DEVICE=eth1:0
ONBOOT=yes
BOOTPROTO=static
IPADDR=192.168.100.250
NETMASK=255.255.255.0

# 네트워크 재시작
$ systemctl restart network

# node1에서 정상적으로 설정되었는지 확인
$ ifconfig
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.102  netmask 255.255.255.0  broadcast 192.168.100.255
        inet6 fe80::a00:27ff:fe44:4b29  prefixlen 64  scopeid 0x20<link>
        ether 08:00:27:44:4b:29  txqueuelen 1000  (Ethernet)
        RX packets 6  bytes 1107 (1.0 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 22  bytes 2342 (2.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.250  netmask 255.255.255.0  broadcast 192.168.100.255
        ether 08:00:27:44:4b:29  txqueuelen 1000  (Ethernet)

4. Keepalived 설치와 설정 파일 수정을 통해 node 1과 node 2에 대한 HA 구성

Keepalived를 node1, node2에 설치
설치를 마친 후, Keepalived의 설정 파일을 수정

4.1. Keepalived 설정 내용 → 설정 내용 적용 후 Keepalived 서비스를 node1, node2에 실행

MASTER 서버의 Priority는 200으로 설정, BACKUP 서버의 Priority는 100 설정 → Priority 값이 높은 쪽이 MASTER 서버가 됨
auth_pass 및 virtual_router 값은 MASTER 서버와 BACKUP 서버 모두 동일해야함 → 해당 값은 default 값으로 그대로 유지
auth_pass는 간단하게 '1010'으로 설정
auth_pass 값도 MASTER 서버와 BACKUP 서버가 동일하게 설정해야함
virtual_ipaddress에는 VIP(192.168.100.250)로 설정해야함

4.2. node 1 (MASTER 서버)

MASTER 서버의 Keepalived 패키지 설치 및 실행

$ yum -y update

# Keepalived 패키지 설치
$ yum -y install keepalived

# Keepalived 설정 파일 수정
$ vi /etc/keepalived/keepalived.conf
! Configuration File for keepalived

vrrp_instance VI_1 {
    state MASTER
    interface eth1
    virtual_router_id 51
    priority 200
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1010
    }
    virtual_ipaddress {
        192.168.100.250
    }
}

# keepalived 실행
$ systemctl start keepalived
$ systemctl enable keepalived

# keepalived 실행 상태 확인
$ systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2021-07-30 15:40:41 UTC; 11s ago
 Main PID: 1081 (keepalived)
   CGroup: /system.slice/keepalived.service
           ├─1081 /usr/sbin/keepalived -D
           ├─1082 /usr/sbin/keepalived -D
           └─1083 /usr/sbin/keepalived -D

Jul 30 15:40:43 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:43 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:43 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:43 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: VRRP_Instance(VI_1) Sending/queueing gratuitous...250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:40:48 master1 Keepalived_vrrp[1083]: Sending gratuitous ARP on eth1 for 192.168.100.250
Hint: Some lines were ellipsized, use -l to show in full.

4.3.node 2 (BACKUP 서버)

BACKUP 서버의 Keepalived 패키지 설치 및 실행

$ yum -y update

# Keepalived 패키지 설치
$ yum -y install keepalived

# Keepalived 설정 파일 수정
$ vi /etc/keepalived/keepalived.conf
! Configuration File for keepalived

vrrp_instance VI_1 {
    state BACKUP
    interface eth1
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1010
    }
    virtual_ipaddress {
        192.168.100.250
    }
}

# keepalived 실행
$ systemctl start keepalived
$ systemctl enable keepalived

# keepalived 실행 상태 확인
$ systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2021-07-30 15:40:41 UTC; 11s ago
 Main PID: 1075 (keepalived)
   CGroup: /system.slice/keepalived.service
           ├─1075 /usr/sbin/keepalived -D
           ├─1076 /usr/sbin/keepalived -D
           └─1077 /usr/sbin/keepalived -D

Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: Registering Kernel netlink reflector
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: Registering Kernel netlink command channel
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: Registering gratuitous ARP shared channel
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: Opening file '/etc/keepalived/keepalived.conf'.
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) removing protocol VIPs.
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: Using LinkWatch kernel netlink reflector...
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Entering BACKUP STATE
Jul 30 15:40:41 master2 Keepalived_vrrp[1077]: VRRP sockpool: [ifindex(3), proto(112), unicast...1)]
Jul 30 15:40:41 master2 Keepalived_healthcheckers[1076]: Initializing ipvs
Jul 30 15:40:41 master2 Keepalived_healthcheckers[1076]: Opening file '/etc/keepalived/keepaliv...'.
Hint: Some lines were ellipsized, use -l to show in full.

5. 첫 번째 테스트 → Keepalived가 잘 실행되는지 확인

node 1, node 2와 같은 Private Subnet(192.168.100.0/24 대역) 안에 있는 테스트 서버(192.168.100.201) 1대를 구성
생성한 VIP(192.168.100.250)로 PING 테스트를 하는 도중에, node 1(MASTER server)을 shut down

5.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

# 테스트 서버(192.168.100.201)에서 ping 테스트
$ ping 192.168.100.250
PING 192.168.100.250 (192.168.100.250) 56(84) bytes of data.
64 bytes from 192.168.100.250: icmp_seq=1 ttl=64 time=0.335 ms
64 bytes from 192.168.100.250: icmp_seq=2 ttl=64 time=0.392 ms
64 bytes from 192.168.100.250: icmp_seq=3 ttl=64 time=0.477 ms
64 bytes from 192.168.100.250: icmp_seq=4 ttl=64 time=0.469 ms
64 bytes from 192.168.100.250: icmp_seq=5 ttl=64 time=0.337 ms
64 bytes from 192.168.100.250: icmp_seq=6 ttl=64 time=0.322 ms
64 bytes from 192.168.100.250: icmp_seq=7 ttl=64 time=0.720 ms    <----- Node1(MASTER 서버)에서 Node2 (BACKUP서버)로 fail-over
64 bytes from 192.168.100.250: icmp_seq=8 ttl=64 time=0.330 ms
64 bytes from 192.168.100.250: icmp_seq=9 ttl=64 time=0.417 ms
64 bytes from 192.168.100.250: icmp_seq=10 ttl=64 time=0.407 ms
64 bytes from 192.168.100.250: icmp_seq=11 ttl=64 time=0.314 ms
64 bytes from 192.168.100.250: icmp_seq=12 ttl=64 time=0.270 ms
64 bytes from 192.168.100.250: icmp_seq=13 ttl=64 time=0.404 ms
64 bytes from 192.168.100.250: icmp_seq=14 ttl=64 time=0.346 ms
64 bytes from 192.168.100.250: icmp_seq=15 ttl=64 time=0.271 ms

5.2. node2 (Backup 서버)에서 /var/log/messages 확인 결과, node 1(Master 서버)의 VIP(192.168.100.201)를 Take-Over 한것 확인 가능

# node2에서 확인
$ tail -f /var/log/messages
Jul 30 15:50:45 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Transition to MASTER STATE
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Entering MASTER STATE
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) setting protocol VIPs.
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:46 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:50:51 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 15:51:03 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Received advert with higher priority 200, ours 100
Jul 30 15:51:03 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Entering BACKUP STATE
Jul 30 15:51:03 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) removing protocol VIPs.

6. 두 번째 테스트 → Keepalived가 잘 실행되는지 확인

node 1, node 2와 같은 Private Subnet(192.168.100.0/24 대역) 안에 있는 테스트 서버(192.168.100.201) 1대를 구성
생성한 VIP(192.168.100.250)로 PING 테스트를 하는 도중에, node 1(MASTER server)의 keepalived 서비스 down 후 트래픽 확인
node 1(MASTER server)의 keepalived 서비스 restart 후 트래픽 확인

6.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

# 테스트 서버(192.168.100.201)에서 ping 테스트
$ ping 192.168.100.250
PING 192.168.100.250 (192.168.100.250) 56(84) bytes of data.
64 bytes from 192.168.100.250: icmp_seq=1 ttl=64 time=0.332 ms
64 bytes from 192.168.100.250: icmp_seq=2 ttl=64 time=0.250 ms
64 bytes from 192.168.100.250: icmp_seq=3 ttl=64 time=0.443 ms
64 bytes from 192.168.100.250: icmp_seq=4 ttl=64 time=0.517 ms
64 bytes from 192.168.100.250: icmp_seq=5 ttl=64 time=0.373 ms
64 bytes from 192.168.100.250: icmp_seq=6 ttl=64 time=0.481 ms
64 bytes from 192.168.100.250: icmp_seq=7 ttl=64 time=0.442 ms
64 bytes from 192.168.100.250: icmp_seq=8 ttl=64 time=0.382 ms
64 bytes from 192.168.100.250: icmp_seq=9 ttl=64 time=0.445 ms

6.2. 일반적인 상황에서 테스트 서버에서 보낸 트래픽이 node1 (Master 서버)의 VIP(eth1:0)로만 트래픽 인입 확인 → node 2(Backup 서버)에는 트래픽 전송 X

# node1 (Master 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
16:52:20.057581 IP worker > master1: ICMP echo request, id 19909, seq 1, length 64
16:52:20.057609 IP master1 > worker: ICMP echo reply, id 19909, seq 1, length 64
16:52:20.292151 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:52:21.061380 IP worker > master1: ICMP echo request, id 19909, seq 2, length 64
16:52:21.061402 IP master1 > worker: ICMP echo reply, id 19909, seq 2, length 64
16:52:21.293746 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:52:22.062916 IP worker > master1: ICMP echo request, id 19909, seq 3, length 64
16:52:22.062938 IP master1 > worker: ICMP echo reply, id 19909, seq 3, length 64
16:52:22.295863 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20

# node2 (Backup 서버)는 대기 -> master에서 상태 체크만 함
$ tcpdump -i eth1:0
16:02:23.931301 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20

6.3. node1 (Master 서버)의 keepalived 서비스 down→ node 2(Backup 서버)에 트래픽 인입 확인

$ systemctl stop keepalived

# node1 (Master 서버)는 대기 -> backup에서 상태 체크만 함
$ tcpdump -i eth1:0
16:54:00.591586 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simp


# node1 (Master 서버)의 /var/log/messages 내용 -> HA Master 종료 확인
$ tail -f /var/log/messages
Jul 30 16:55:02 master1 kernel: device eth1 left promiscuous mode
Jul 30 16:55:29 master1 systemd: Stopping LVS and VRRP High Availability Monitor...
Jul 30 16:55:29 master1 Keepalived[4960]: Stopping
Jul 30 16:55:29 master1 Keepalived_vrrp[4962]: VRRP_Instance(VI_1) sent 0 priority
Jul 30 16:55:29 master1 Keepalived_vrrp[4962]: VRRP_Instance(VI_1) removing protocol VIPs.
Jul 30 16:55:29 master1 Keepalived_healthcheckers[4961]: Stopped
Jul 30 16:55:30 master1 Keepalived_vrrp[4962]: Stopped
Jul 30 16:55:30 master1 Keepalived[4960]: Stopped Keepalived v1.3.5 (03/19,2017), git commit v1.3.5-6-g6fa32f2
Jul 30 16:55:30 master1 systemd: Stopped LVS and VRRP High Availability Monitor.


# node2 (Backup 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
16:53:30.532423 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
16:53:30.548001 IP worker > master2: ICMP echo request, id 19910, seq 18, length 64
16:53:30.548028 IP master2 > worker: ICMP echo reply, id 19910, seq 18, length 64
16:53:31.549477 IP worker > master2: ICMP echo request, id 19910, seq 19, length 64
16:53:31.549499 IP master2 > worker: ICMP echo reply, id 19910, seq 19, length 64
16:53:31.549530 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
16:53:32.549784 IP worker > master2: ICMP echo request, id 19910, seq 20, length 64
16:53:32.549824 IP master2 > worker: ICMP echo reply, id 19910, seq 20, length 64
16:53:32.549972 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20


# node2 (Backup 서버)의 /var/log/messages 내용 -> HA Backup 시작 확인
$ tail -f /var/log/messages
Jul 30 16:55:29 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Transition to MASTER STATE
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Entering MASTER STATE
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) setting protocol VIPs.
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:30 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:35 master2 Keepalived_vrrp[1077]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:55:35 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250

6.4. node1 (Master 서버)의 keepalived 서비스 restart → node 1(Master 서버)에 트래픽 다시 인입 확인

$ systemctl restart keepalived

# node1 (Master 서버)의 VIP로만 트래픽 다시 인입 확인
$ tcpdump -i eth1:0
16:54:17.656150 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:54:18.626524 IP worker > master1: ICMP echo request, id 19910, seq 66, length 64
16:54:18.626563 IP master1 > worker: ICMP echo reply, id 19910, seq 66, length 64
16:54:18.657517 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:54:19.628842 IP worker > master1: ICMP echo request, id 19910, seq 67, length 64
16:54:19.628864 IP master1 > worker: ICMP echo reply, id 19910, seq 67, length 64
16:54:19.658916 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20


# node1 (Master 서버)의 /var/log/messages 내용 -> HA Master 재시작 확인
$ tail -f /var/log/messages
Jul 30 16:58:51 master1 Keepalived[4985]: Starting Keepalived v1.3.5 (03/19,2017), git commit v1.3.5-6-g6fa32f2
Jul 30 16:58:51 master1 Keepalived[4985]: Opening file '/etc/keepalived/keepalived.conf'.
Jul 30 16:58:51 master1 Keepalived[4986]: Starting Healthcheck child process, pid=4987
Jul 30 16:58:51 master1 systemd: Started LVS and VRRP High Availability Monitor.
Jul 30 16:58:51 master1 Keepalived[4986]: Starting VRRP child process, pid=4988
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: Registering Kernel netlink reflector
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: Registering Kernel netlink command channel
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: Registering gratuitous ARP shared channel
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: Opening file '/etc/keepalived/keepalived.conf'.
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) removing protocol VIPs.
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: Using LinkWatch kernel netlink reflector...
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: VRRP sockpool: [ifindex(3), proto(112), unicast(0), fd(10,11)]
Jul 30 16:58:51 master1 Keepalived_healthcheckers[4987]: Opening file '/etc/keepalived/keepalived.conf'.
Jul 30 16:58:51 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) Transition to MASTER STATE
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) Entering MASTER STATE
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) setting protocol VIPs.
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:52 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: VRRP_Instance(VI_1) Sending/queueing gratuitous ARPs on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250
Jul 30 16:58:57 master1 Keepalived_vrrp[4988]: Sending gratuitous ARP on eth1 for 192.168.100.250


# node2 (Backup 서버)는 대기 -> master에서 상태 체크만 함
$ tcpdump -i eth1:0
16:54:37.679862 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20


# node2 (Backup 서버)의 /var/log/messages 내용 -> HA backup이 Master로 빼았김 확인
$ tail -f /var/log/messages
Jul 30 16:58:51 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Received advert with higher priority 200, ours 100
Jul 30 16:58:51 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) Entering BACKUP STATE
Jul 30 16:58:51 master2 Keepalived_vrrp[1077]: VRRP_Instance(VI_1) removing protocol VIPs.

7. 세 번째 테스트 → Keepalived가 잘 실행되는지 확인

master 네트워크 절단시 backup으로 인입 OK, master 네트워크 재시동 이후 트래픽이 자동으로 master에 오지 않음(keepalived 서비스 재시작 필요)
node 1, node 2와 같은 Private Subnet(192.168.100.0/24 대역) 안에 있는 테스트 서버(192.168.100.201) 1대를 구성
생성한 VIP(192.168.100.250)로 PING 테스트를 하는 도중에, node 1(MASTER server)의 네트워크를 down
일정 시간 지난 후 다시 네트워크를 up한 후 eth1:0 VIP를 구성
네트워크가 up되어도 backup으로 계속 트래픽 발생 → master 서버로 돌아오지 않음

7.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

# 테스트 서버(192.168.100.201)에서 ping 테스트
$ ping 192.168.100.250
PING 192.168.100.250 (192.168.100.250) 56(84) bytes of data.
64 bytes from 192.168.100.250: icmp_seq=1 ttl=64 time=0.335 ms
64 bytes from 192.168.100.250: icmp_seq=2 ttl=64 time=0.392 ms
64 bytes from 192.168.100.250: icmp_seq=3 ttl=64 time=0.477 ms
64 bytes from 192.168.100.250: icmp_seq=4 ttl=64 time=0.469 ms
64 bytes from 192.168.100.250: icmp_seq=5 ttl=64 time=0.337 ms
64 bytes from 192.168.100.250: icmp_seq=6 ttl=64 time=0.322 ms
64 bytes from 192.168.100.250: icmp_seq=7 ttl=64 time=0.720 ms    <----- Node1(MASTER 서버)에서 Node2 (BACKUP서버)로 fail-over
64 bytes from 192.168.100.250: icmp_seq=8 ttl=64 time=0.330 ms
64 bytes from 192.168.100.250: icmp_seq=9 ttl=64 time=0.417 ms
64 bytes from 192.168.100.250: icmp_seq=10 ttl=64 time=0.407 ms
64 bytes from 192.168.100.250: icmp_seq=11 ttl=64 time=0.314 ms
64 bytes from 192.168.100.250: icmp_seq=12 ttl=64 time=0.270 ms
64 bytes from 192.168.100.250: icmp_seq=13 ttl=64 time=0.404 ms
64 bytes from 192.168.100.250: icmp_seq=14 ttl=64 time=0.346 ms
64 bytes from 192.168.100.250: icmp_seq=15 ttl=64 time=0.271 ms
64 bytes from 192.168.100.250: icmp_seq=16 ttl=64 time=0.314 ms

7.2. 일반적인 상황에서 테스트 서버에서 보낸 트래픽이 node1 (Master 서버)의 VIP(eth1:0)로만 트래픽 인입 확인 → node 2(Backup 서버)에는 트래픽 전송 X

# node1 (Master 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
15:58:09.214853 IP worker > master1: ICMP echo request, id 1015, seq 1, length 64
15:58:09.214893 IP master1 > worker: ICMP echo reply, id 1015, seq 1, length 64
15:58:10.121214 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
15:58:10.216097 IP worker > master1: ICMP echo request, id 1015, seq 2, length 64
15:58:10.216121 IP master1 > worker: ICMP echo reply, id 1015, seq 2, length 64
15:58:11.122587 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
15:58:11.216543 IP worker > master1: ICMP echo request, id 1015, seq 3, length 64
15:58:11.216564 IP master1 > worker: ICMP echo reply, id 1015, seq 3, length 64
15:58:12.123952 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
15:58:12.218872 IP worker > master1: ICMP echo request, id 1015, seq 4, length 64
15:58:12.218894 IP master1 > worker: ICMP echo reply, id 1015, seq 4, length 64


# node2 (Backup 서버)는 대기 -> master에서 상태 체크만 함
$ tcpdump -i eth1:0
16:02:23.931301 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20

7.3. node1 (Master 서버)의 network down→ node 2(Backup 서버)에 트래픽 인입 확인

$ systemctl stop network

# node1 (Master 서버)의 VIP로는 어떠한 값도 들어오지 않음 -> 통신 절단
$ tcpdump -i eth1:0


# node2 (Backup 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
16:06:43.837509 ARP, Request who-has master2 tell worker, length 46
16:06:43.837526 ARP, Reply master2 is-at 08:00:27:44:4b:29 (oui Unknown), length 28
16:06:43.837837 IP worker > master2: ICMP echo request, id 1015, seq 514, length 64
16:06:43.837854 IP master2 > worker: ICMP echo reply, id 1015, seq 514, length 64
16:06:44.001473 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:06:44.843864 IP worker > master2: ICMP echo request, id 1015, seq 515, length 64
16:06:44.843888 IP master2 > worker: ICMP echo reply, id 1015, seq 515, length 64
16:06:45.045735 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20

7.4. node1 (Master 서버)의 network restart 이후 VIP(192.168.100.250) 다시 설정 → node 2(Backup 서버)에 트래픽 인입 확인

$ systemctl restart network


# node1 (Master 서버)의 eth1 인터페이스 up하면 자동으로 VIP가 생성되지 않음 -> eth1의 VIP(eth1:0)를 수동으로 설정 필요
$ ifconfig
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.101  netmask 255.255.255.0  broadcast 192.168.100.255
        inet6 fe80::a00:27ff:fe30:d141  prefixlen 64  scopeid 0x20<link>
        ether 08:00:27:30:d1:41  txqueuelen 1000  (Ethernet)
        RX packets 625  bytes 59642 (58.2 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1663  bytes 120386 (117.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


# eth1의 VIP(eth1:0)를 수동으로 설정
$ ifconfig eth1:0 192.168.100.250 netmask 255.255.255.0
$ ifconfig
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.101  netmask 255.255.255.0  broadcast 192.168.100.255
        inet6 fe80::a00:27ff:fe30:d141  prefixlen 64  scopeid 0x20<link>
        ether 08:00:27:30:d1:41  txqueuelen 1000  (Ethernet)
        RX packets 625  bytes 59642 (58.2 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1679  bytes 121346 (118.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1:0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.100.250  netmask 255.255.255.0  broadcast 192.168.100.255
        ether 08:00:27:30:d1:41  txqueuelen 1000  (Ethernet)


# # node1 (Master 서버)는 대기 -> backup에서 상태 체크만 함
$ tcpdump -i eth1:0
16:02:23.931301 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20


# node2 (Backup 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
16:06:43.837509 ARP, Request who-has master2 tell worker, length 46
16:06:43.837526 ARP, Reply master2 is-at 08:00:27:44:4b:29 (oui Unknown), length 28
16:06:43.837837 IP worker > master2: ICMP echo request, id 1015, seq 514, length 64
16:06:43.837854 IP master2 > worker: ICMP echo reply, id 1015, seq 514, length 64
16:06:44.001473 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20
16:06:44.843864 IP worker > master2: ICMP echo request, id 1015, seq 515, length 64
16:06:44.843888 IP master2 > worker: ICMP echo reply, id 1015, seq 515, length 64
16:06:45.045735 IP master1 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 200, authtype simple, intvl 1s, length 20

7.5. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 기존의 PING 테스트 세션을 종료 후 다시 진행해도 그대로 유지

# 테스트 서버(192.168.100.201)에서 ping 테스트
$ ping 192.168.100.250
PING 192.168.100.250 (192.168.100.250) 56(84) bytes of data.
64 bytes from 192.168.100.250: icmp_seq=1 ttl=64 time=0.335 ms
64 bytes from 192.168.100.250: icmp_seq=2 ttl=64 time=0.392 ms
64 bytes from 192.168.100.250: icmp_seq=3 ttl=64 time=0.477 ms
64 bytes from 192.168.100.250: icmp_seq=4 ttl=64 time=0.469 ms
64 bytes from 192.168.100.250: icmp_seq=5 ttl=64 time=0.337 ms
64 bytes from 192.168.100.250: icmp_seq=6 ttl=64 time=0.322 ms
64 bytes from 192.168.100.250: icmp_seq=7 ttl=64 time=0.720 ms
64 bytes from 192.168.100.250: icmp_seq=8 ttl=64 time=0.330 ms
64 bytes from 192.168.100.250: icmp_seq=9 ttl=64 time=0.417 ms
64 bytes from 192.168.100.250: icmp_seq=10 ttl=64 time=0.407 ms
64 bytes from 192.168.100.250: icmp_seq=11 ttl=64 time=0.314 ms
64 bytes from 192.168.100.250: icmp_seq=12 ttl=64 time=0.270 ms
64 bytes from 192.168.100.250: icmp_seq=13 ttl=64 time=0.404 ms
64 bytes from 192.168.100.250: icmp_seq=14 ttl=64 time=0.346 ms
64 bytes from 192.168.100.250: icmp_seq=15 ttl=64 time=0.271 ms
64 bytes from 192.168.100.250: icmp_seq=16 ttl=64 time=0.314 ms
64 bytes from 192.168.100.250: icmp_seq=17 ttl=64 time=0.491 ms
64 bytes from 192.168.100.250: icmp_seq=18 ttl=64 time=0.480 ms
64 bytes from 192.168.100.250: icmp_seq=19 ttl=64 time=0.389 ms
64 bytes from 192.168.100.250: icmp_seq=20 ttl=64 time=0.362 ms
64 bytes from 192.168.100.250: icmp_seq=21 ttl=64 time=0.392 ms
64 bytes from 192.168.100.250: icmp_seq=22 ttl=64 time=0.399 ms
64 bytes from 192.168.100.250: icmp_seq=23 ttl=64 time=0.381 ms
64 bytes from 192.168.100.250: icmp_seq=24 ttl=64 time=0.277 ms
64 bytes from 192.168.100.250: icmp_seq=25 ttl=64 time=0.570 ms
[...생략]
^C
--- 192.168.100.250 ping statistics ---
908 packets transmitted, 889 received, 2% packet loss, time 910037ms
rtt min/avg/max/mdev = 0.151/0.452/6.065/0.216 ms


# 테스트 서버(192.168.100.201)에서 다시 ping 테스트
$ ping 192.168.100.250
PING 192.168.100.250 (192.168.100.250) 56(84) bytes of data.
64 bytes from 192.168.100.250: icmp_seq=1 ttl=64 time=0.446 ms
64 bytes from 192.168.100.250: icmp_seq=2 ttl=64 time=0.608 ms
64 bytes from 192.168.100.250: icmp_seq=3 ttl=64 time=0.395 ms
64 bytes from 192.168.100.250: icmp_seq=4 ttl=64 time=0.452 ms
64 bytes from 192.168.100.250: icmp_seq=5 ttl=64 time=0.504 ms
64 bytes from 192.168.100.250: icmp_seq=6 ttl=64 time=0.483 ms

7.6. node 1(Master 서버)의 VIP(192.168.100.250)에 트래픽 다시 인입 확인

# node1 (Master 서버)는 대기 -> backup에서 상태 체크만 함
$ tcpdump -i eth1:0
16:41:59.321344 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20


# node2 (Backup 서버)의 VIP로만 트래픽 인입 확인
$ tcpdump -i eth1:0
16:42:06.024044 IP worker > master2: ICMP echo request, id 19904, seq 45, length 64
16:42:06.024077 IP master2 > worker: ICMP echo reply, id 19904, seq 45, length 64
16:42:06.343284 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20
16:42:07.033519 IP worker > master2: ICMP echo request, id 19904, seq 46, length 64
16:42:07.033543 IP master2 > worker: ICMP echo reply, id 19904, seq 46, length 64
16:42:07.346173 IP master2 > vrrp.mcast.net: VRRPv2, Advertisement, vrid 51, prio 100, authtype simple, intvl 1s, length 20

저작자표시 비영리 변경금지

'Opensource(오픈 소스) > HAproxy' 카테고리의 다른 글

Nginx로 Load Balancer 구성 → Virtual Machine 테스트 (0)	2022.07.30
L4/L7 스위치의 대안, 오픈 소스 로드 밸런서 HAProxy란 (0)	2022.07.30
단일 HAproxy 설치(HAproxy 1대와 웹 서버 2대) (0)	2022.07.26
부하 분산(Load Balancing)이란 (0)	2022.07.10

히포

Keepalived를 활용하여 간단하게 HA 구성

1. Keepalived 기본 설명

2. Keepalived 구성

3. 3가지 작업을 통해 Keepalived를 활용한 HA 구성을 위한 사전 준비

3.1. Private Subnet 생성

3.2. node 1, node 2에 추가 인터페이스 할당

3.3. node 1, node 2에 VIP(Virtual IP) 할당

4. Keepalived 설치와 설정 파일 수정을 통해 node 1과 node 2에 대한 HA 구성

4.1. Keepalived 설정 내용 → 설정 내용 적용 후 Keepalived 서비스를 node1, node2에 실행

4.2. node 1 (MASTER 서버)

4.3.node 2 (BACKUP 서버)

5. 첫 번째 테스트 → Keepalived가 잘 실행되는지 확인

5.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

5.2. node2 (Backup 서버)에서 /var/log/messages 확인 결과, node 1(Master 서버)의 VIP(192.168.100.201)를 Take-Over 한것 확인 가능

6. 두 번째 테스트 → Keepalived가 잘 실행되는지 확인

6.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

6.2. 일반적인 상황에서 테스트 서버에서 보낸 트래픽이 node1 (Master 서버)의 VIP(eth1:0)로만 트래픽 인입 확인 → node 2(Backup 서버)에는 트래픽 전송 X

6.3. node1 (Master 서버)의 keepalived 서비스 down→ node 2(Backup 서버)에 트래픽 인입 확인

6.4. node1 (Master 서버)의 keepalived 서비스 restart → node 1(Master 서버)에 트래픽 다시 인입 확인

7. 세 번째 테스트 → Keepalived가 잘 실행되는지 확인

7.1. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 PING 테스트 진행

7.2. 일반적인 상황에서 테스트 서버에서 보낸 트래픽이 node1 (Master 서버)의 VIP(eth1:0)로만 트래픽 인입 확인 → node 2(Backup 서버)에는 트래픽 전송 X

7.3. node1 (Master 서버)의 network down→ node 2(Backup 서버)에 트래픽 인입 확인

7.4. node1 (Master 서버)의 network restart 이후 VIP(192.168.100.250) 다시 설정 → node 2(Backup 서버)에 트래픽 인입 확인

7.5. 테스트 서버(192.168.100.201)에서 VIP(192.168.100.250)로 기존의 PING 테스트 세션을 종료 후 다시 진행해도 그대로 유지

7.6. node 1(Master 서버)의 VIP(192.168.100.250)에 트래픽 다시 인입 확인

'Opensource(오픈 소스) > HAproxy' 카테고리의 다른 글

+ Recent posts

티스토리툴바
